Self-Healing And Sentinel

Self-healing helps IT operations teams keep endpoint recovery work moving without giving automation unlimited authority. Use it to see which endpoints are healthy, which ones need attention, what Pharaoh tried, and where a human approval or rejection is required before work continues.

The main operator jobs are:

  • open endpoint-specific self-healing health and pending escalation context
  • open endpoint-specific Sentinel history before approving risky work
  • review endpoint-scoped automation request and policy context
  • confirm that the endpoint returned to a known-good or intentionally deferred state

Where It Lives

Section titled “Where It Lives”

Open an endpoint, then select the Self Healing endpoint tab.

The main routes are:

  • /endpoints/<endpoint-id>/self-healing for the endpoint self-healing Status view inside the endpoint detail shell
  • /endpoints/<endpoint-id>/self-healing/sessions for linked recovery sessions
  • /endpoints/<endpoint-id>/self-healing/sentinel for active Sentinel provenance and source
  • /endpoints/<endpoint-id>/self-healing/sentinel-runs for Sentinel run history
  • /endpoints/<endpoint-id>/self-healing/activity for the paginated endpoint self-healing activity timeline
  • /endpoints/<endpoint-id>/self-healing/knowledge for the endpoint knowledge document

Endpoint details also include a Sentinel panel. Use it for a quick status read before opening the endpoint-scoped self-healing workspace.

Endpoint Sentinel Panel

Section titled “Endpoint Sentinel Panel”

The endpoint detail page shows a Sentinel panel between the endpoint identity summary and the endpoint detail tabs.

The panel can show:

  • Sentinel status, such as Passed, Failed, Timeout, Invalid output, Policy denied, Runner error, Stale, or Not configured
  • the latest summary text
  • Last run, Duration, Version, and Policy
  • links to an active self-healing session or agent thread when one is projected
  • a pending escalation count
  • endpoint knowledge document status and length

Use this panel when you need a fast answer to whether the endpoint has recent Sentinel context before opening deeper self-healing history. For approval work, stale or missing Sentinel context is a reason to slow down and inspect the endpoint page instead of approving from the queue alone.

Endpoint Sentinel panel showing current health, run timing, and self-healing links.

The panel is also usable on a phone during on-call review. The same evidence remains visible: status, summary, run time, policy, active session or thread, pending escalation count, and knowledge document status.

Mobile endpoint Sentinel panel showing the same health, escalation, and knowledge cues.

Before approving from this context, confirm:

  1. The endpoint identity matches the ticket, alert, or user report.
  2. Last run is newer than the incident context you are acting on.
  3. The summary explains why Pharaoh needs help.
  4. The policy and version match the expected guardrail boundary.
  5. Pending escalations and endpoint knowledge metadata are consistent with the request.

Endpoint Self-Healing Detail

Section titled “Endpoint Self-Healing Detail”

The Endpoint Self-Healing workspace is the operational record for one endpoint. It stays inside the endpoint detail page, so the endpoint header and endpoint tabs remain visible while you move through self-healing history. Open it before approving work when the request could change endpoint state, require elevated access, or affect a business-critical user.

The workspace has seven endpoint-scoped subviews in the left rail: Status, Sessions, Sentinel, Run history, Escalations, Activity, and Knowledge. It does not include a top-level Refresh button. Use the detailed subviews for history and review, and use Regenerate Sentinel from the Sentinel view when a Sentinel needs a new candidate.

Across these views, Pharaoh uses readable titles, statuses, sources, and friendly dates as primary labels. Internal ids may appear as supporting context or links, but they should not be the main thing you have to read first.

Status

  • current self-healing and Sentinel state
  • operator-readable facts for policy, active Sentinel, latest run, endpoint knowledge document metadata, and pending escalations
  • recent activity preview
  • links into the detailed subviews when a fact needs inspection

Use Status first. It answers whether the endpoint is healthy, whether automation needs action, and whether the current policy and Sentinel context are recognizable without exposing raw database ids as primary labels.

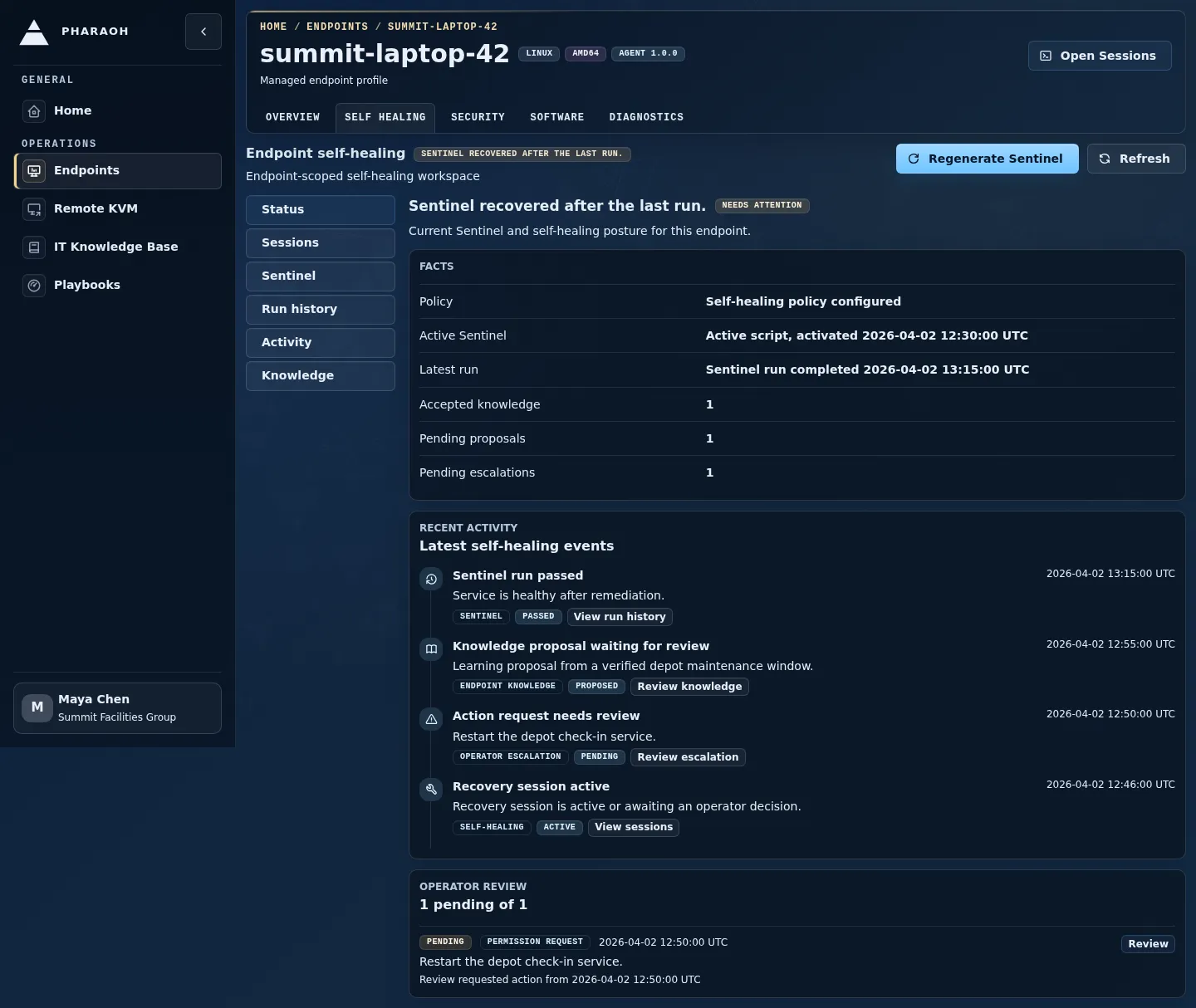

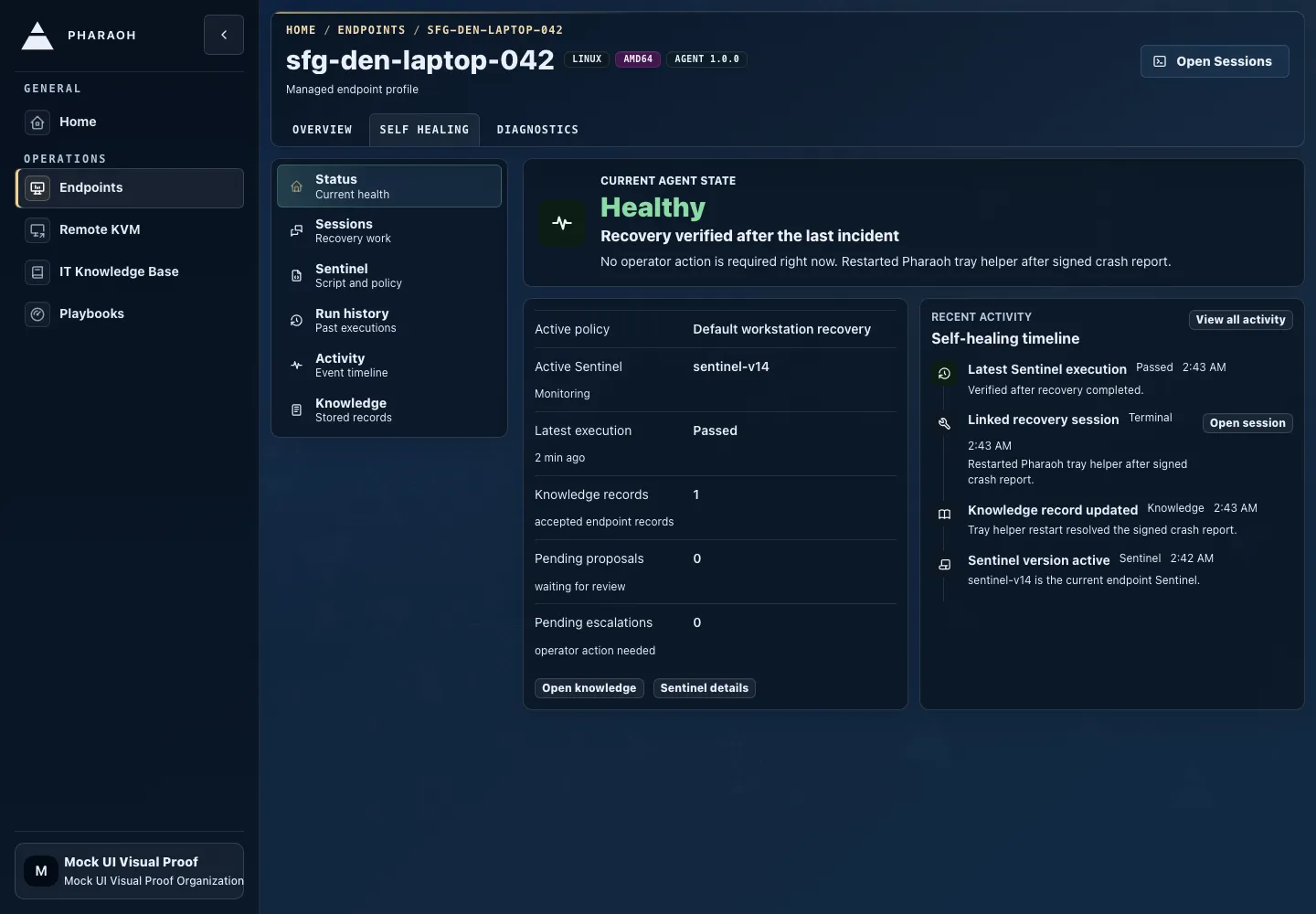

Endpoint self-healing Status view showing current health, facts, and recent activity.

On mobile, Status keeps the same endpoint context, self-healing rail, facts, and activity preview without requiring horizontal scrolling.

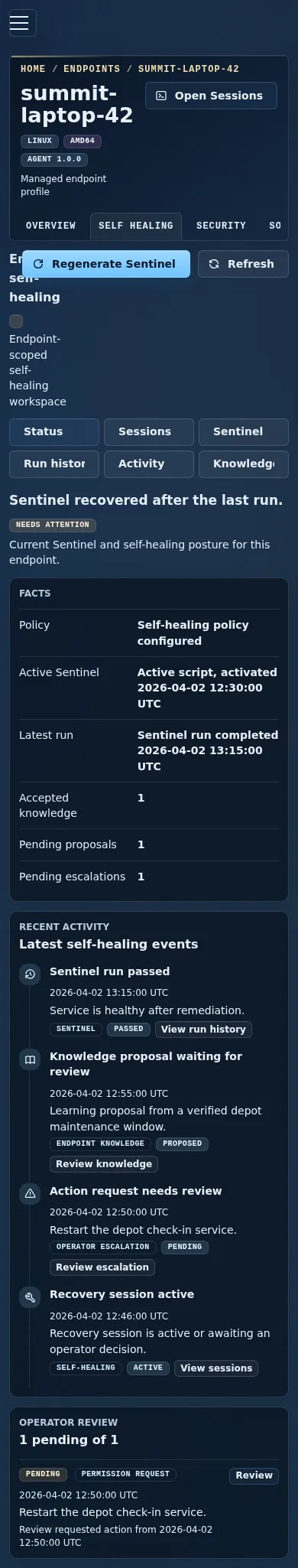

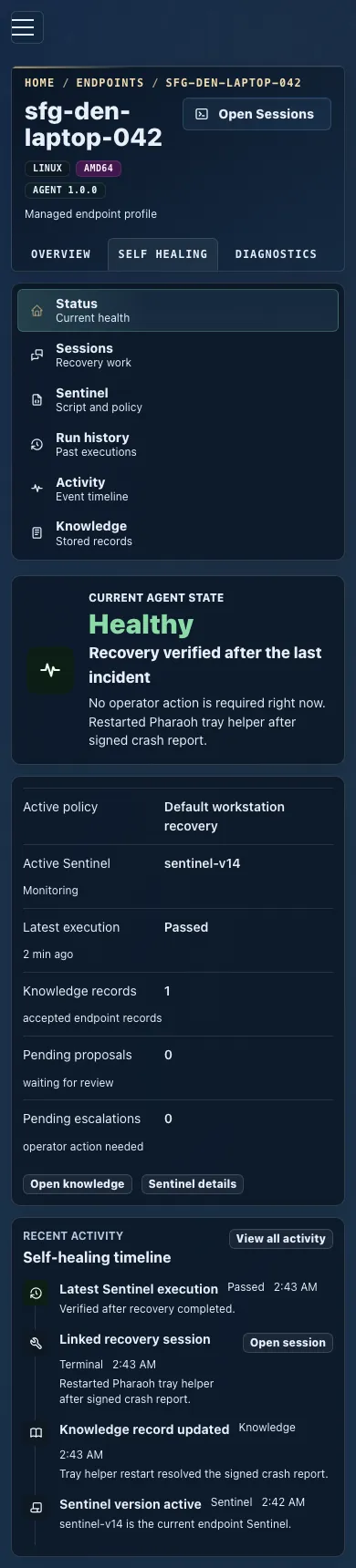

Mobile endpoint self-healing Status view showing current health and facts.

Sessions

  • paginated linked recovery-session table for this endpoint
  • session status and terminal outcome
  • agent thread links when projected
  • dates and friendly titles instead of primary ids
  • row links into the session or thread when Pharaoh has a target to open

Use Sessions to understand what Pharaoh already attempted and whether the requested action is a continuation of a known recovery path or a new branch of work.

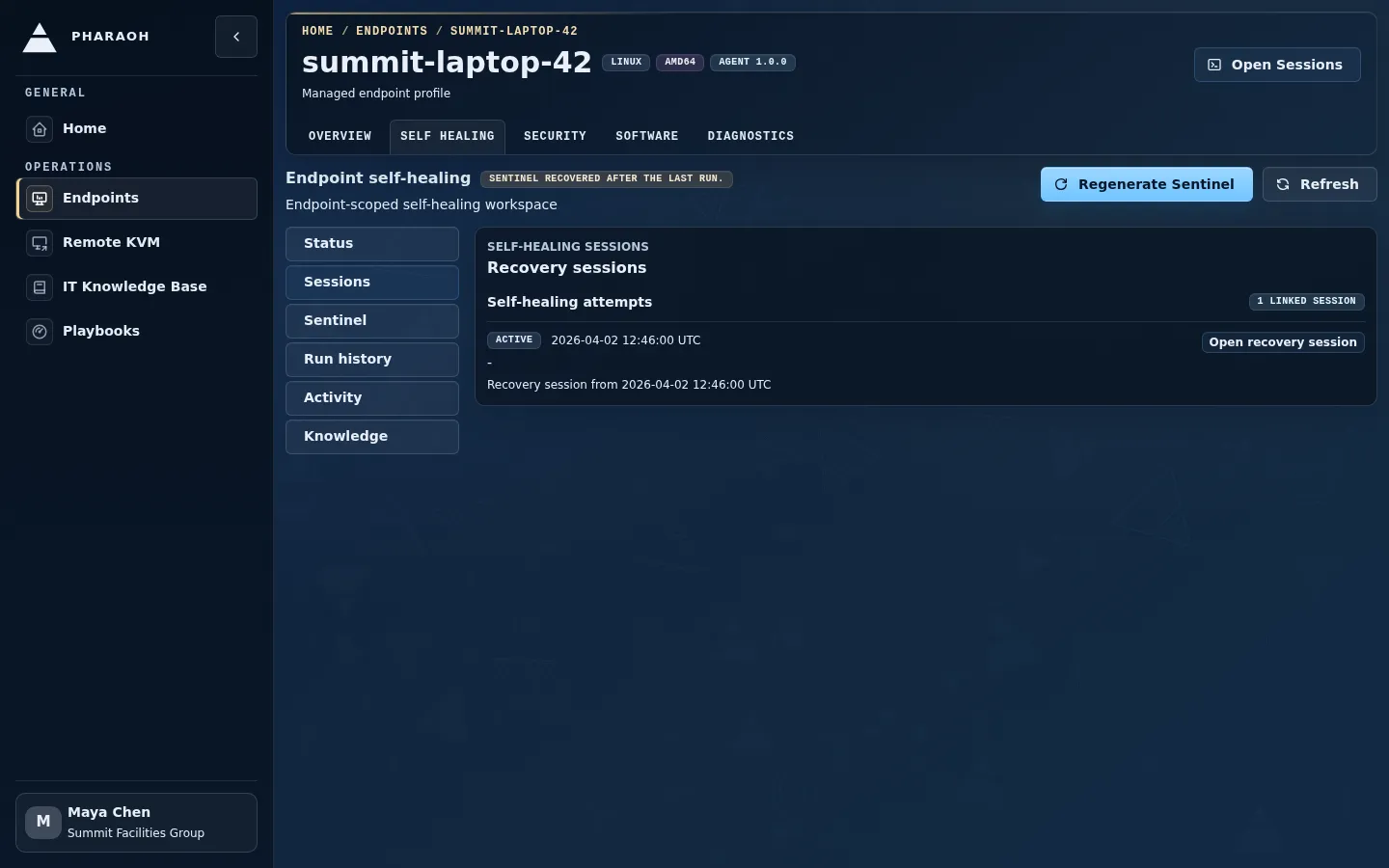

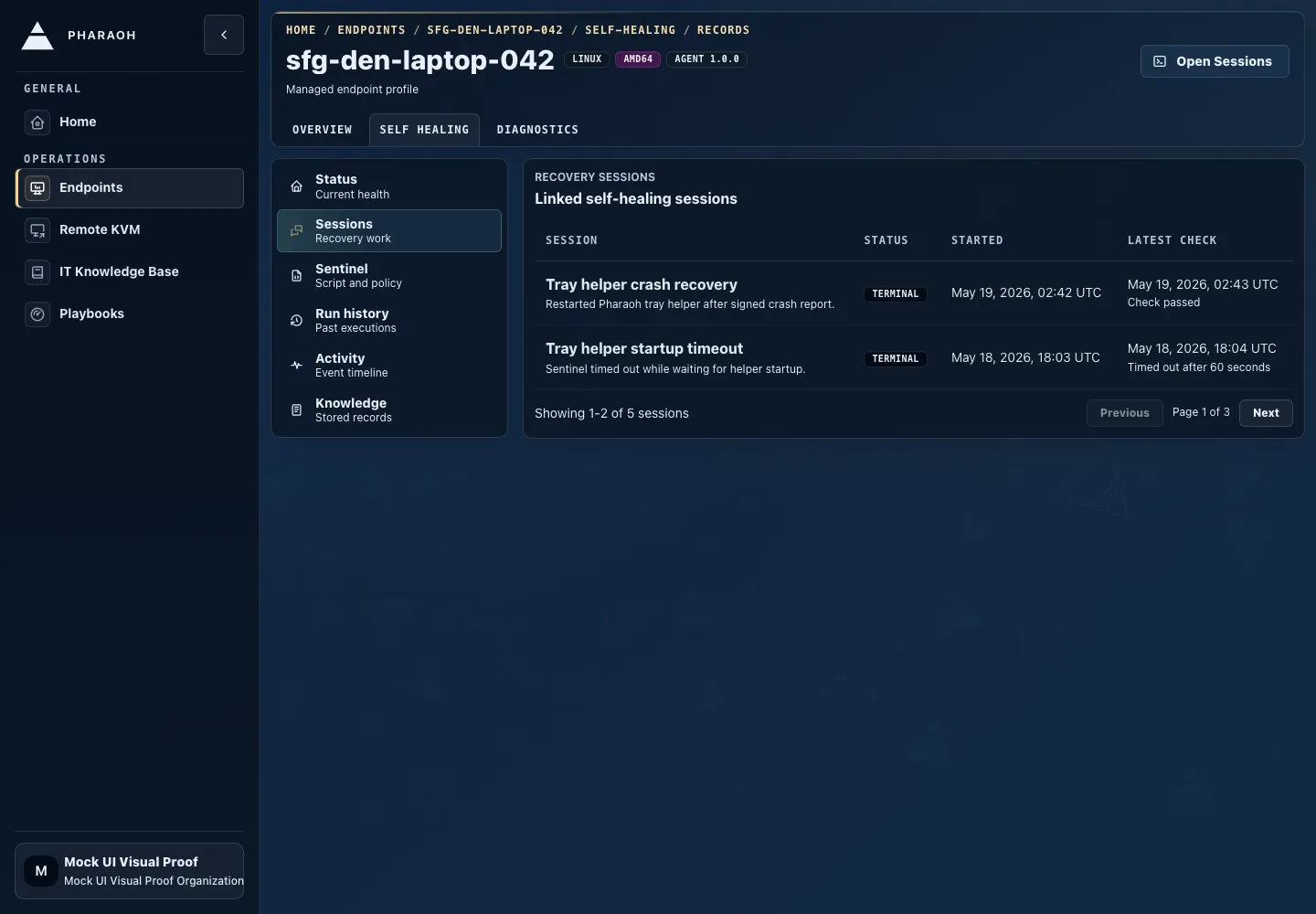

Endpoint self-healing Sessions view showing linked recovery work.

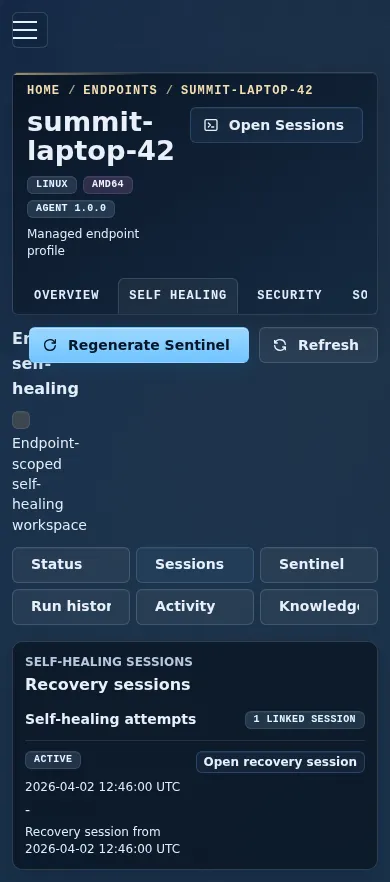

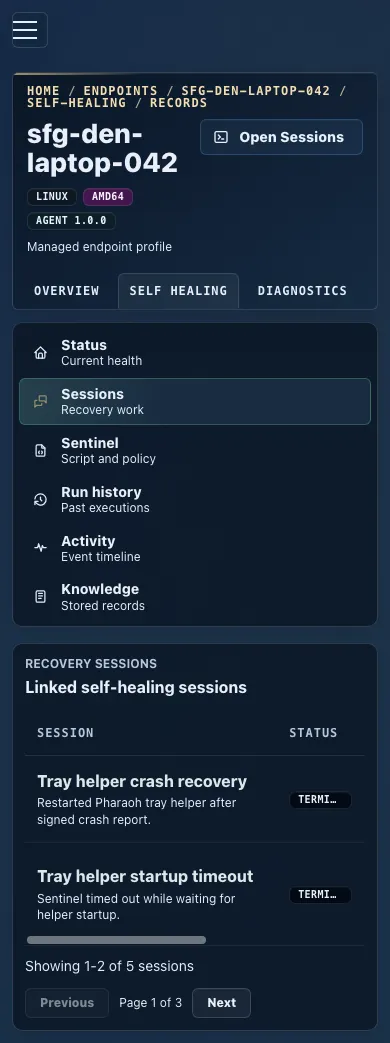

Mobile endpoint self-healing Sessions view showing linked recovery work.

Sentinel

  • active Sentinel version and provenance
  • generation, validation, and activation context
  • latest execution state
  • full-width Sentinel source below the provenance and detail cards
  • Regenerate Sentinel for starting a bounded Sentinel regeneration flow
  • View execution history for moving to the run-history table
  • View full script when you need the complete source in a modal

Check Sentinel for recency and consistency. A recent Passed result can support approval for a narrow follow-up. Repeated Failed, Timeout, Policy denied, or Runner error results suggest you should inspect the session and policy context before deciding.

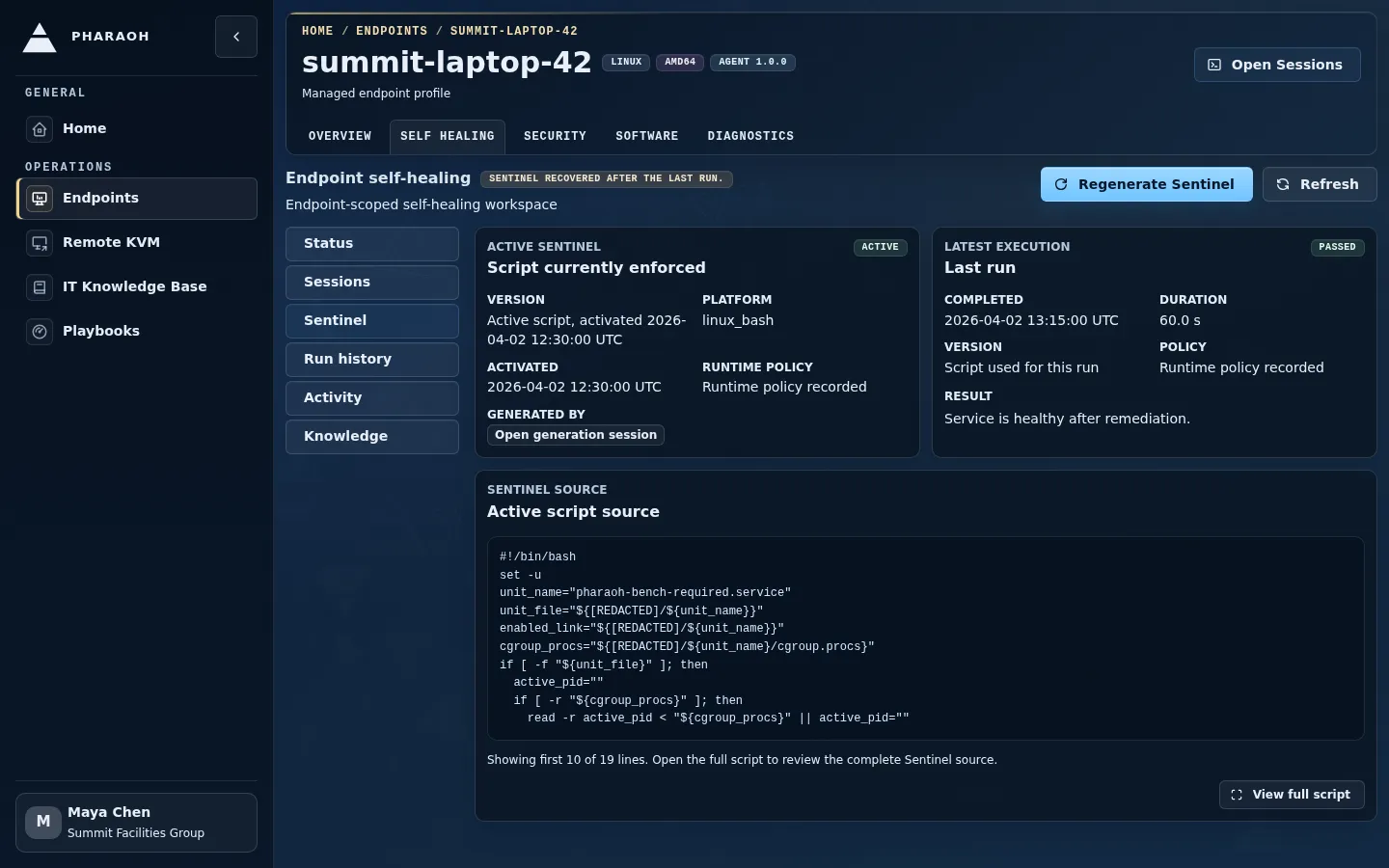

Endpoint self-healing Sentinel view showing active Sentinel provenance and source.

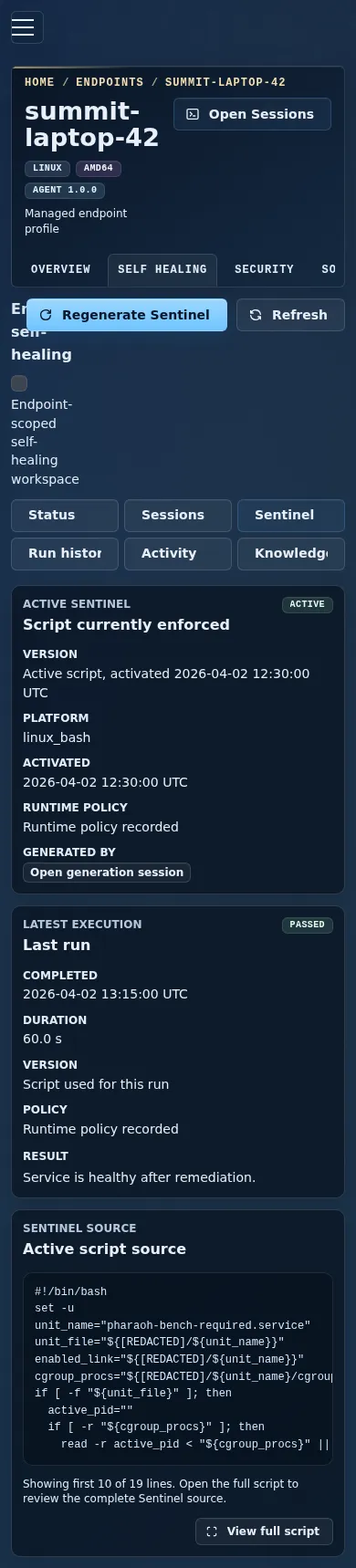

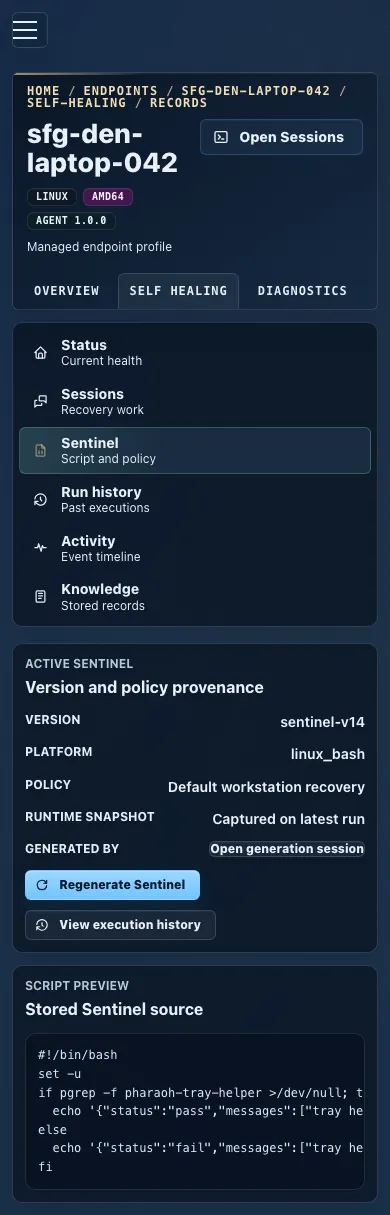

Mobile endpoint self-healing Sentinel view showing provenance and source.

Run history

  • paginated historical Sentinel execution table
  • generated run titles, status, completed time, and duration
  • output summaries and checks when available
  • session links for runs that triggered recovery work
  • clickable rows or links when there is a related run/session target

Use Run history when the latest result is not enough. A single failed run may be transient; repeated failed, timed out, or policy-denied runs are stronger evidence that approval should slow down.

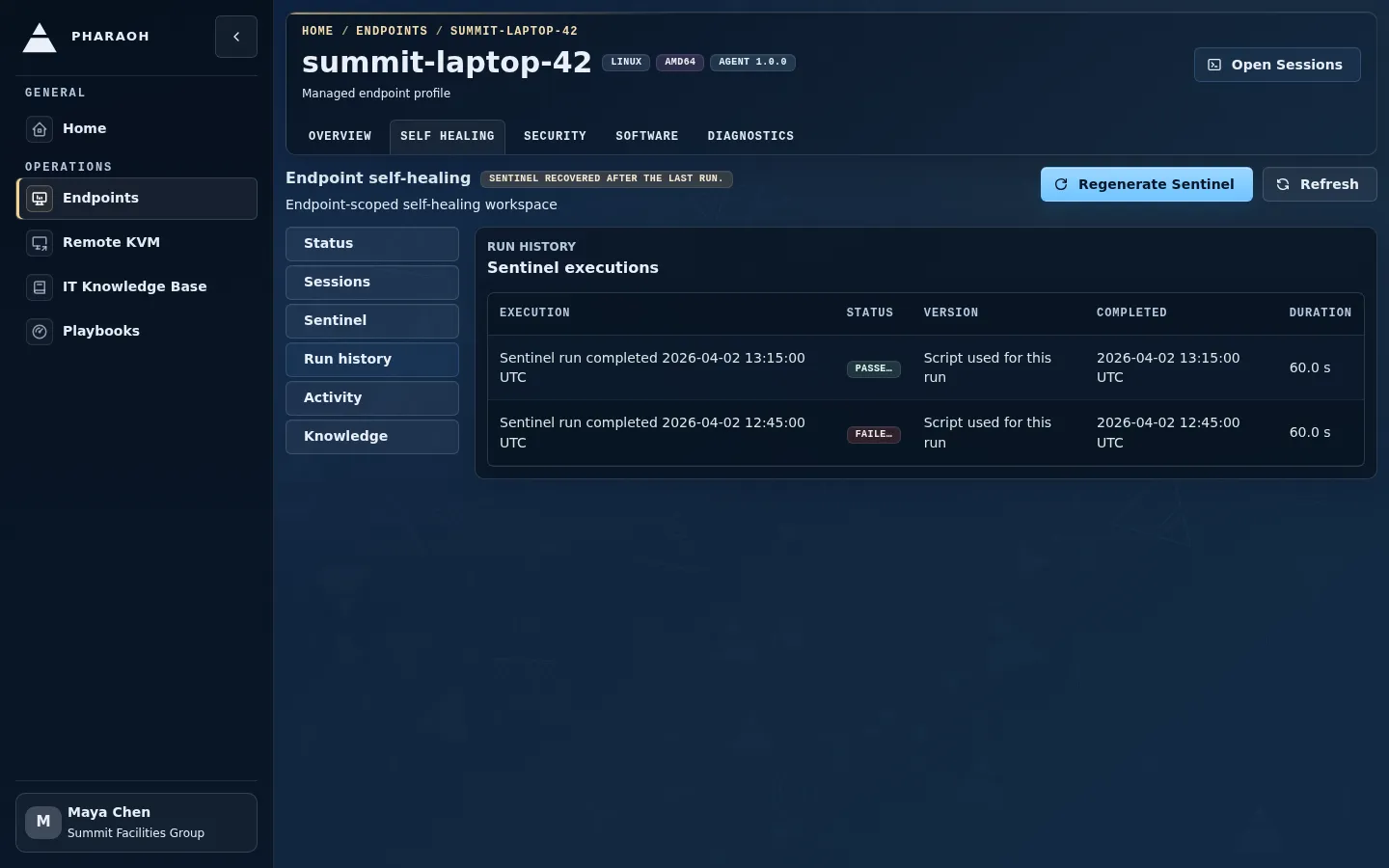

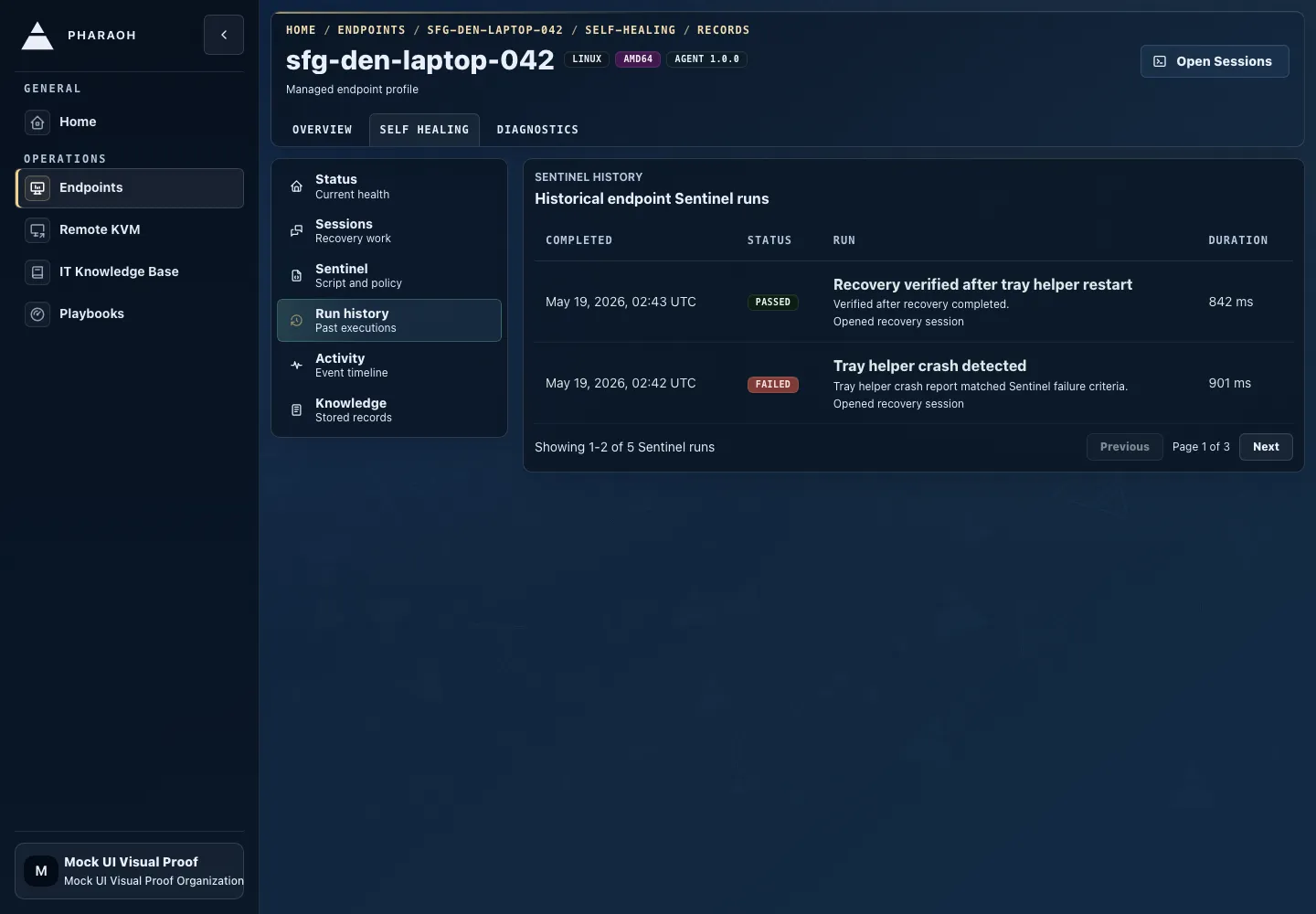

Endpoint self-healing Run history view showing Sentinel execution history.

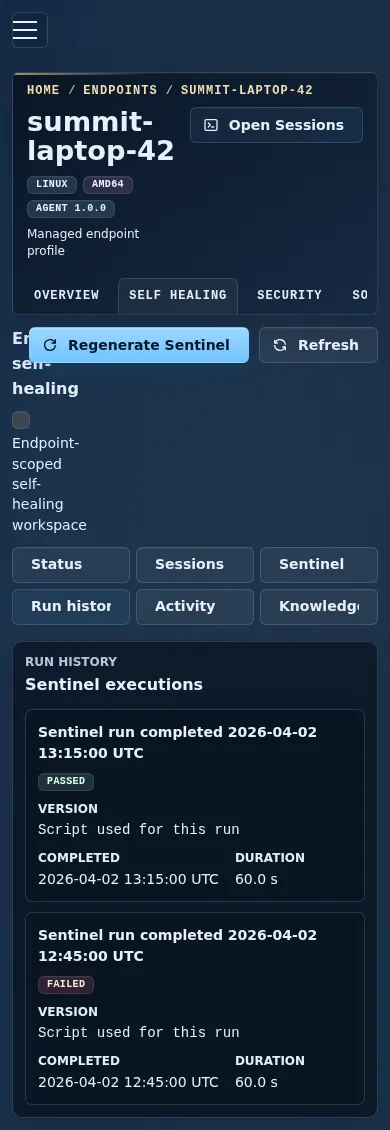

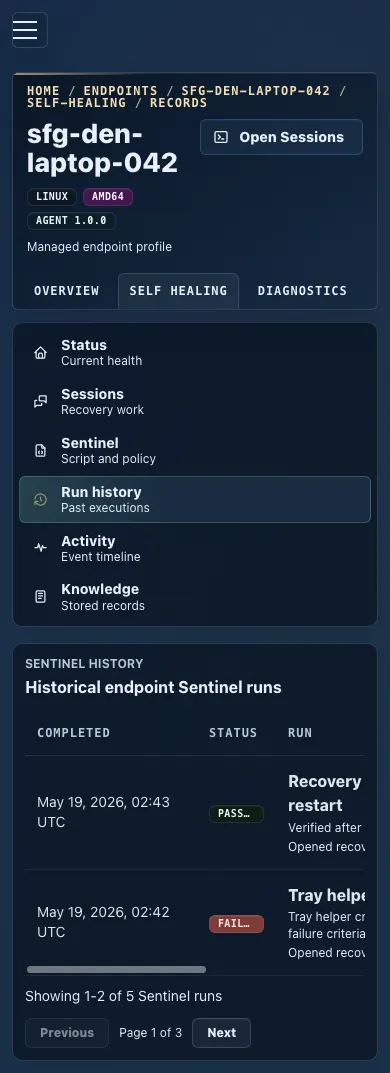

Mobile endpoint self-healing Run history view showing Sentinel execution history.

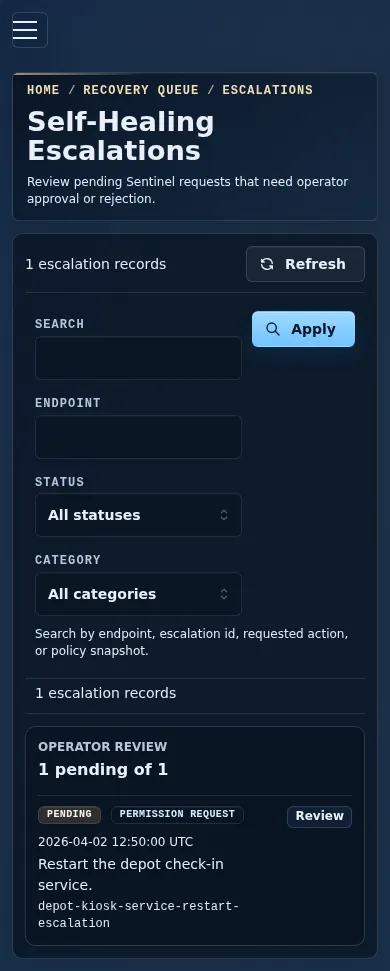

Escalations

  • endpoint-scoped escalation rows tied to the active or historical self-healing work
  • pending count and decision status
  • links into the escalation review page when an operator decision is required
  • provenance for the related session, thread, policy snapshot, and requested action

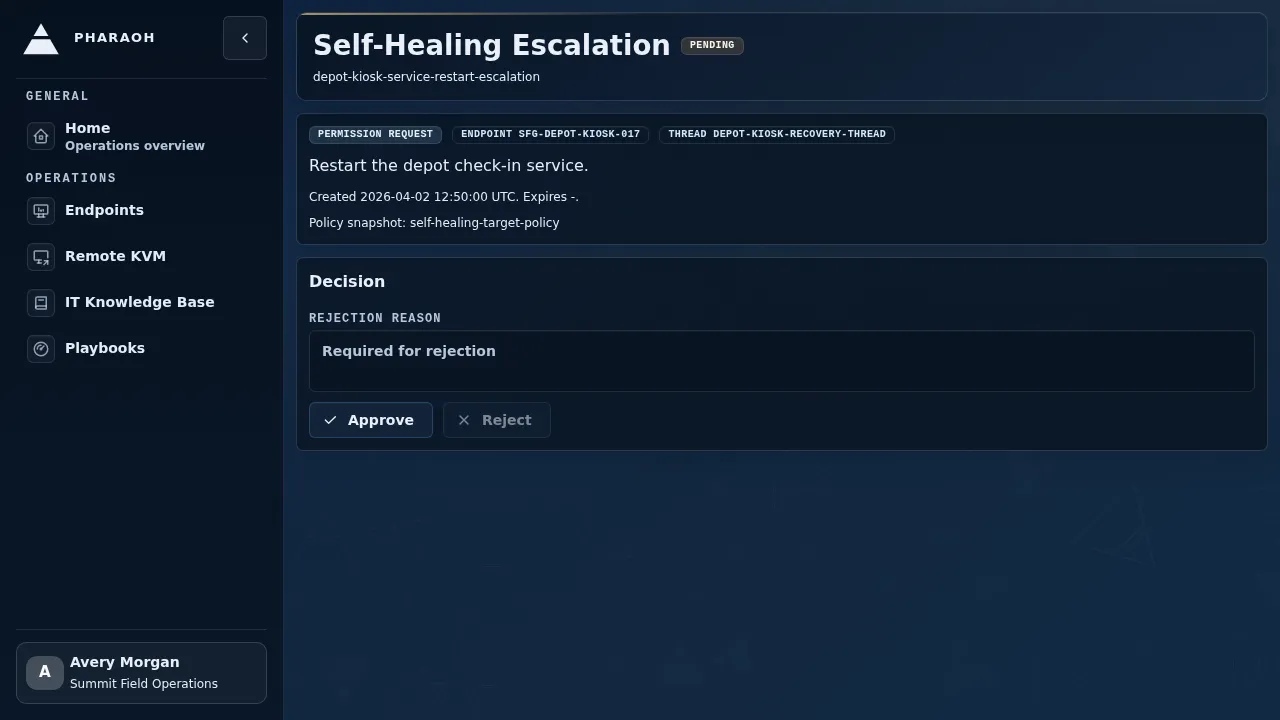

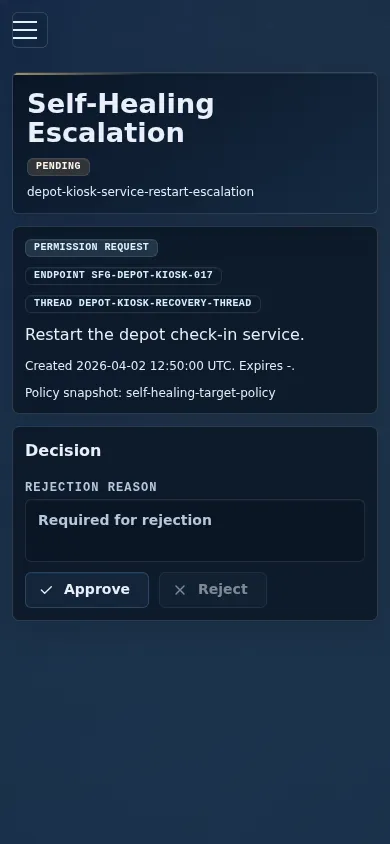

Use Escalations when the endpoint detail panel or Status view shows that an operator decision is pending. Approve or reject from the escalation review page, then return to endpoint self-healing history to confirm the outcome.

Activity

  • combined self-healing activity synthesized from existing Sentinel, session, knowledge-document, and escalation records
  • event-specific labels, status, source, and time
  • links to the relevant endpoint self-healing subview when available
  • pagination for longer histories

Use Activity when you need the complete timeline rather than the short Status preview. The list is a projection for operator review, not a separate audit log or new persisted event store.

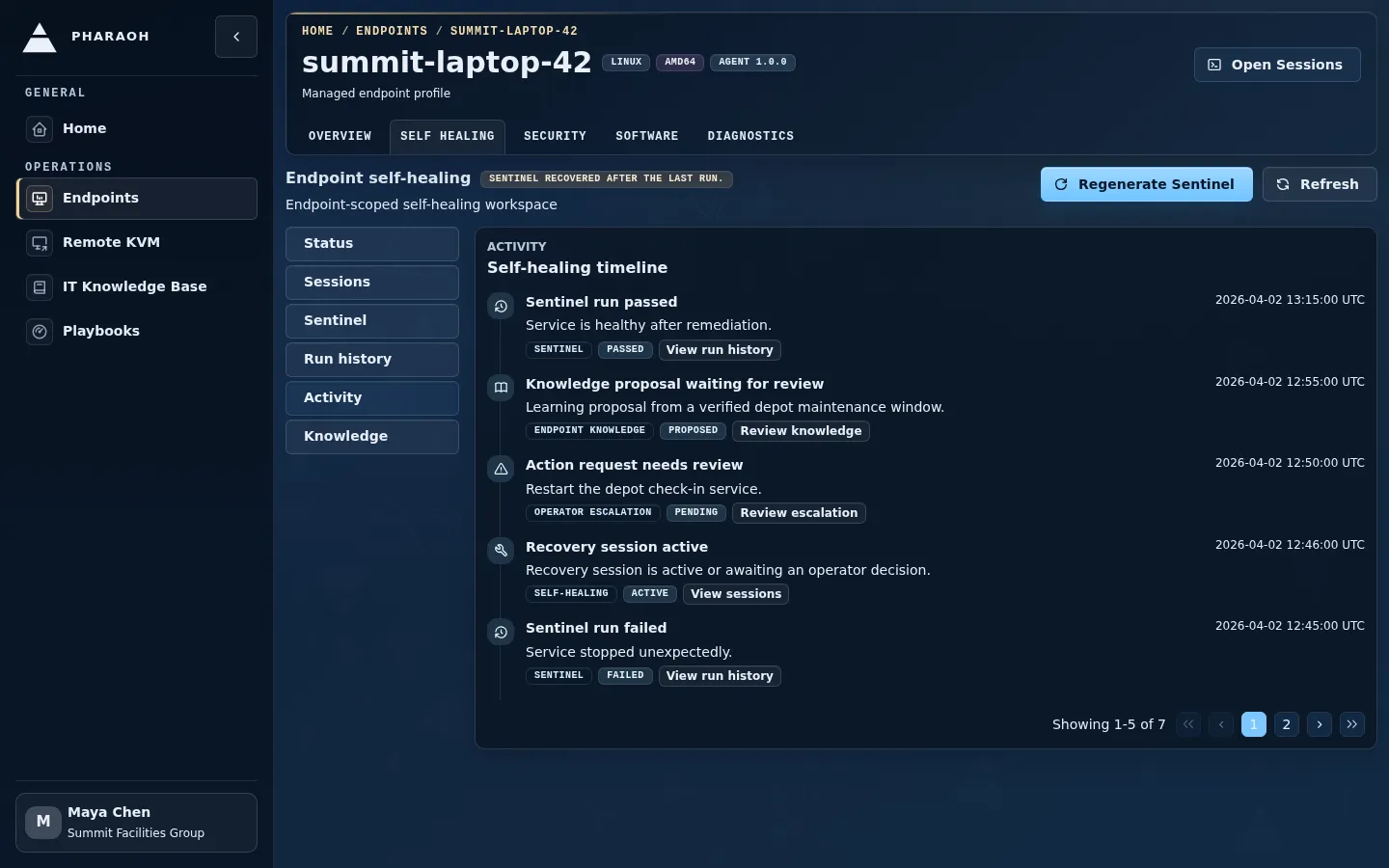

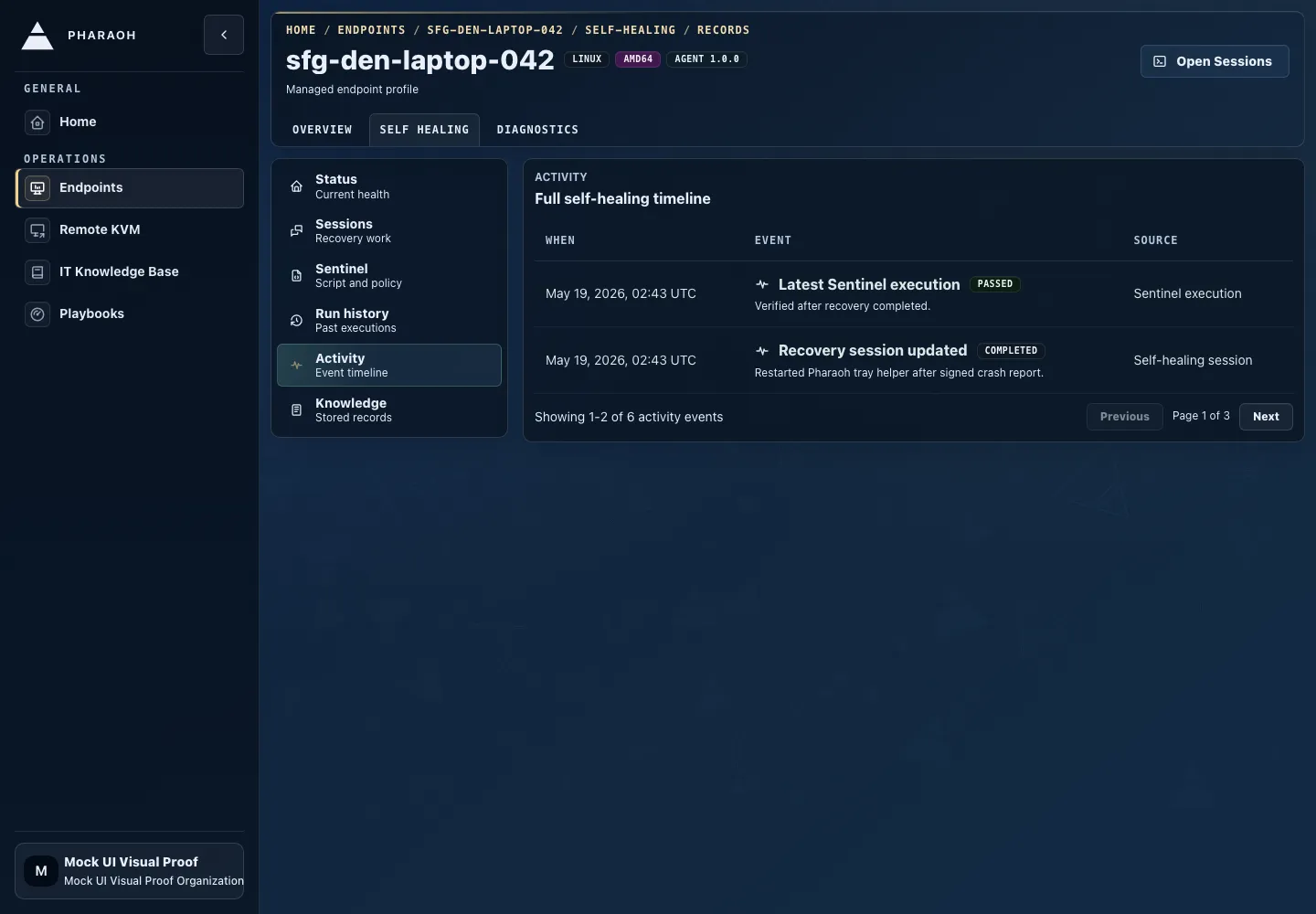

Endpoint self-healing Activity view showing the paginated event timeline.

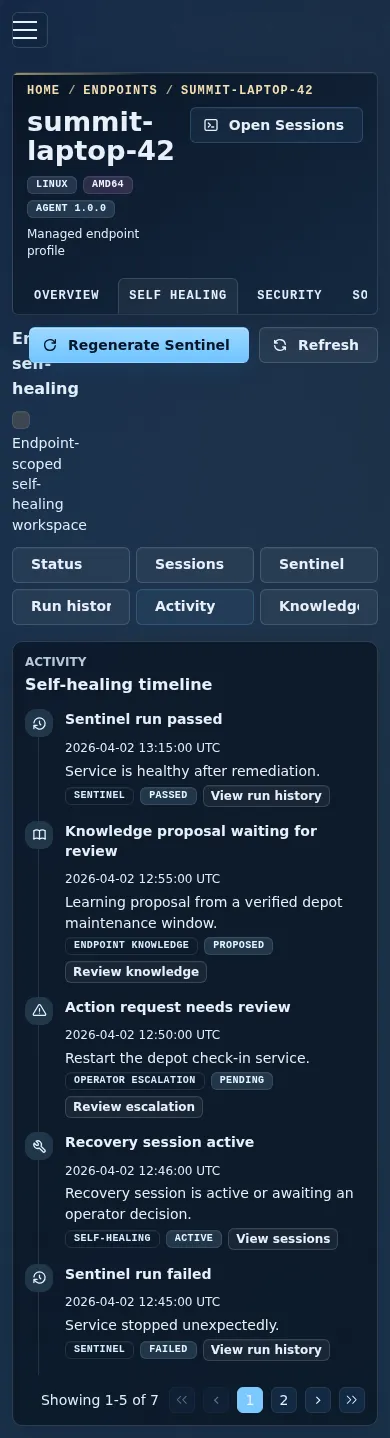

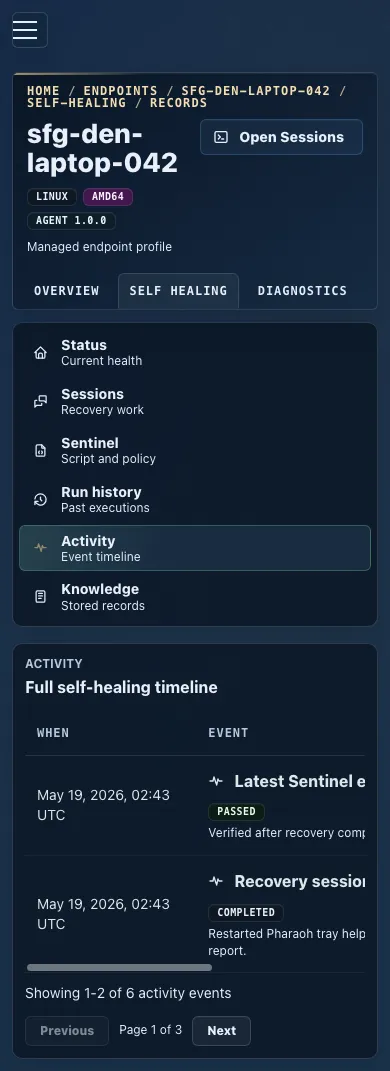

Mobile endpoint self-healing Activity view showing the paginated event timeline.

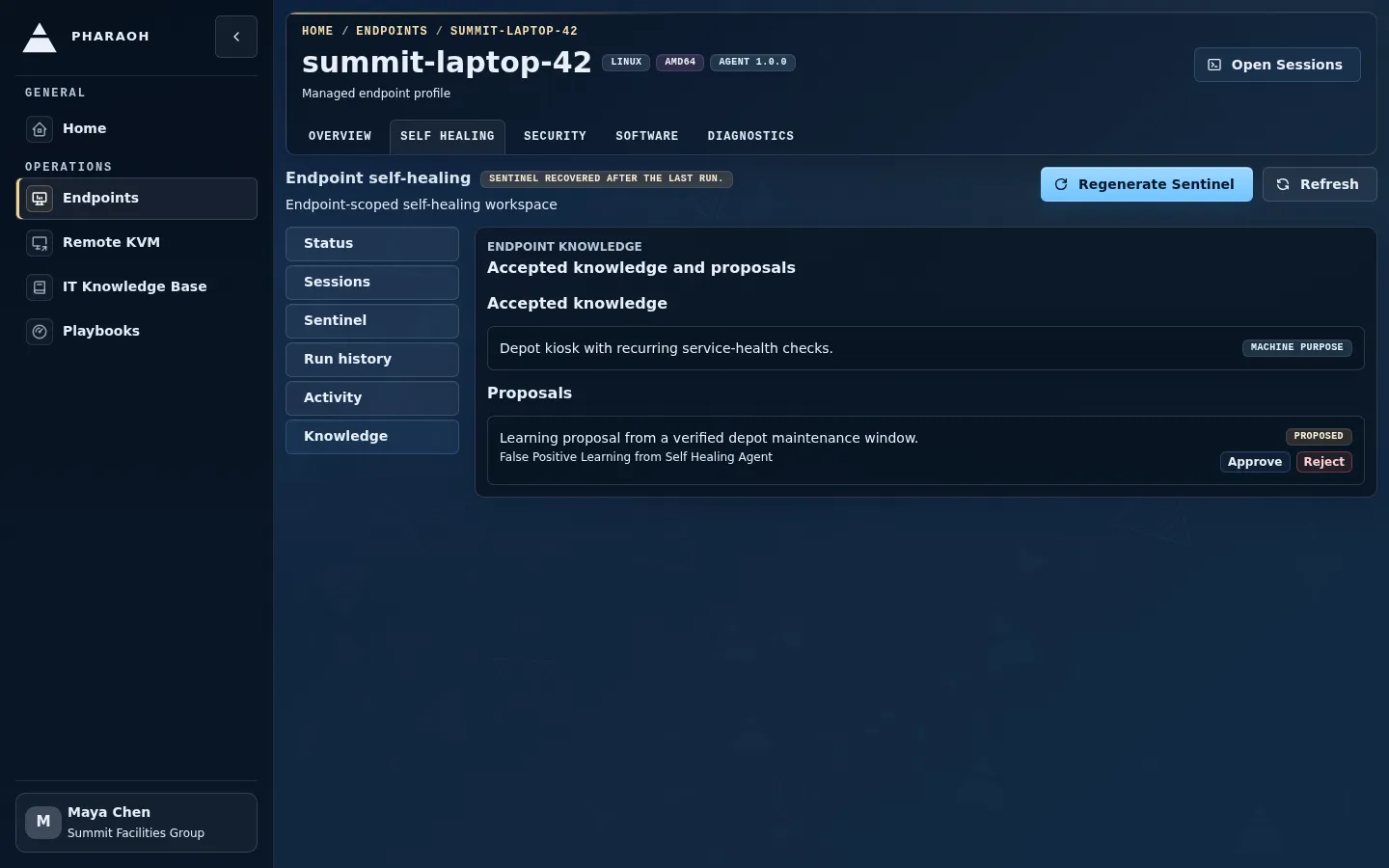

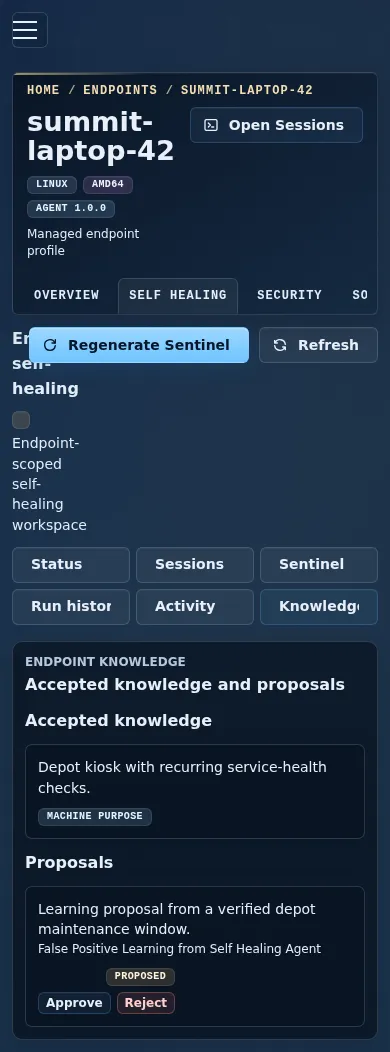

Knowledge

  • the current endpoint self-healing knowledge document
  • document metadata such as revision, source, last update time, and character count
  • a 5000-character limit for the document body
  • Save document when your role can edit endpoint knowledge

Endpoint knowledge is endpoint-specific self-healing memory. Pharaoh stores it as one mutable document per endpoint. Agent outcomes and structured investigation outputs can rewrite the document in place with provenance; authorized operators can also edit and save it with revision protection. Keep the document focused on durable endpoint facts that should help future recovery.

When reviewing knowledge before an escalation decision, look for facts that explain the current failure: known service names, endpoint-specific maintenance windows, hardware limitations, or previously recorded false positives. Do not use the document as a reason to ignore a failed Sentinel execution; failed executions should still create or reuse self-healing work, and incorrect Sentinel behavior should be handled through regeneration.

Organization-wide runbooks and imported support content still live in IT Knowledge Base.

Structured Outcome Cards In Agent Worklogs

Section titled “Structured Outcome Cards In Agent Worklogs”

Self-healing sessions write final structured outcomes into the same Agent Core worklog used by endpoint sessions. Pharaoh renders those outcomes as compact operational cards instead of treating the final answer as ordinary prose.

Card types you may see:

  • Sentinel candidate when Sentinel generation or regeneration produced a candidate script, validation state, activation state, and endpoint update dispatch state.
  • Self-healing investigation with outcome Fixed, False positive, Unable to fix escalated, or Ignored not applicable.
  • Structured output validation failed when the assistant could not produce a valid final output after repair attempts.
  • Unknown structured output contract when a future contract is visible before the local UI has a purpose-built renderer.

Use the cards as audit evidence. Check the status badge, summary, processing timeline, trace links, and any learning, escalation, or regeneration section before deciding that automation finished correctly. A false-positive card can include a separate regeneration recommendation; that does not mean the active Sentinel changed until validation and activation state confirm it.

Current screenshot replay page IDs for these card states are tracked in the screenshot manifest:

  • self-healing-candidate-card
  • self-healing-investigation-card-fixed
  • self-healing-investigation-card-false-positive
  • self-healing-investigation-card-escalated
  • agent-core-structured-output-validation-failure
  • agent-core-structured-output-unknown-fallback

Success Checks

Section titled “Success Checks”

After reviewing endpoint self-healing state, confirm the operational outcome:

  • reopen the endpoint self-healing page and check the latest Sentinel, session, and escalation history
  • confirm the endpoint’s current state matches the reason for the decision
  • look for repeated escalations from the same endpoint before treating the issue as resolved
  • document any durable endpoint-specific learning in the endpoint knowledge document when it will help future recovery
